LED Komplettleuchten

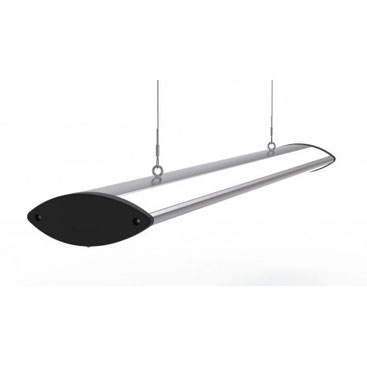

LED Komplettleuchte modular erweiterbar von 40 bis 150 Watt

  • Ip-code: IP51
  • Glass: Frosted
  • Type of LED Driver: Tridonic
  • Type of sensor: Neoline
  • Numbers of PBC: 2-6
  • Numbers of LED per PBC: 130 pcs.
  • Dimmable: Yes, from 3 – 100%
  • Type of LED: SMD
  • Power (W): 20W - 150W
  • Color temperature: 3000/4000/5000K
  • Luminous efficiency Lm/W: up to 190 Lm/W
  • Color rendering index (Ra): >85 RA
  • Power factor: >0.95
  • Efficiency: >92%
  • Beam angle: 120°
  • Voltage: 185V-265V
  • Frequency: 50 - 60Hz
  • Driver: included
  • Cabinet: Alu-plastic
  • Remote control range: >12 meter
  • Through wiring: Yes, 3 phase + DALI
  • Time delay: Adjustable
  • Power consumption: 0,680A
  • Operating temperature: -40°/+50°C
  • Average life expec. at 25°C: 60000h
  • Dimensions (H X B): 200 x 78 mm
  • Length: 1475 mm
  • Energy class: A ++
  • Warranty period: 5 years
